Victron Energy
Victron MultiPlus-II 24/3000/70-50 120V Inverter/Charger | UL
In stock
Pickup by appointment in Calgary · Shipping calculated at checkout
Product details

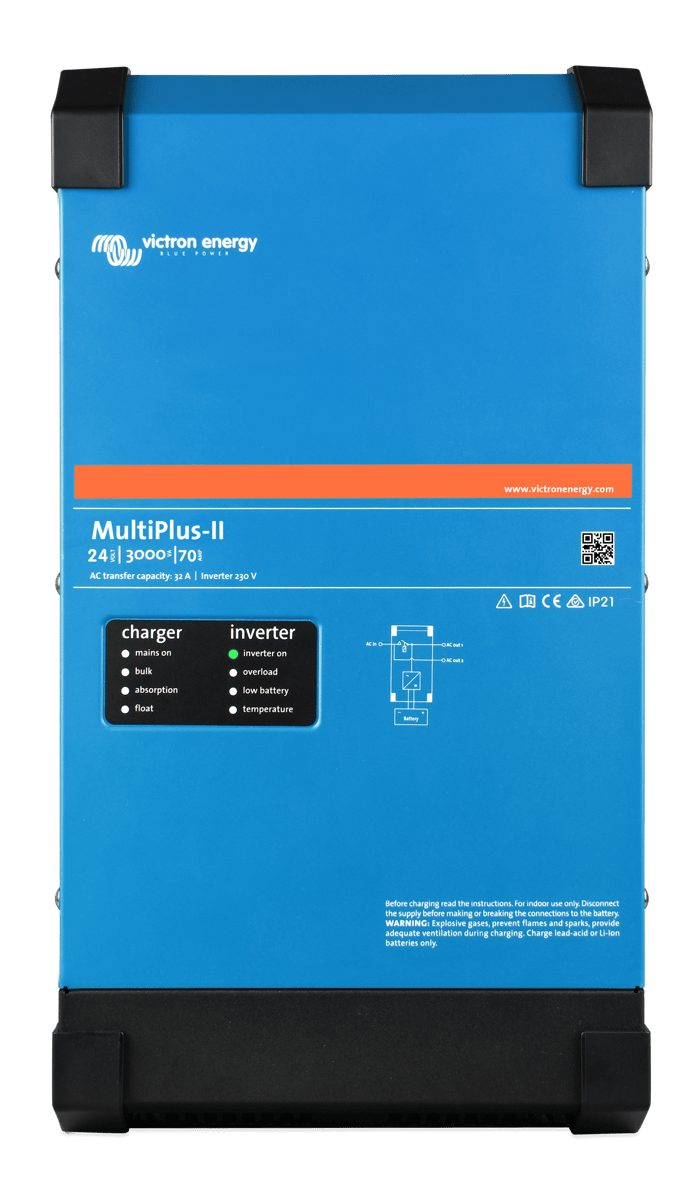

Victron MultiPlus-II 24/3000/70-50 120V UL Inverter/Charger
The Victron MultiPlus-II 24/3000/70-50 is a professional 24V inverter/charger for RV, marine, mobile, cabin, backup-power and off-grid systems. It combines a 3000VA true sine wave inverter, a 70A adaptive charger, a 50A transfer switch, PowerControl and PowerAssist in one VE.Bus platform.
Verified Highlights
- 3000VA inverter with 2400W continuous output at 25°C.
- 5500W peak power for short-duration startup loads.
- 70A maximum battery charging current.
- 50A transfer switch and 50A maximum AC input current.
- PowerControl and PowerAssist for generator or shore-power management.
- VE.Bus support for parallel, split-phase and three-phase system integration.
- UL 458 listing and CSA 22.2 107.1-16 safety compliance.
Complete Technical Specifications
| Manufacturer | Victron Energy |
|---|---|
| Model | PMP242305102 |
| Charge Solar SKU | VE-M2-3024 |
| Battery system voltage | 24V nominal |
| DC input range | 19–33V |
| AC output | 120VAC ±2%, 60Hz ±0.1% |
| Continuous inverter rating | 3000VA / 2400W at 25°C |
| Continuous output at 40°C | 2200W |
| Continuous output at 65°C | 1700W |
| Peak power | 5500W |
| Maximum efficiency | 94% |
| Maximum charger current | 70A |
| Transfer switch | 50A |
| Maximum AC input | 50A |
| AC input range | 90–140VAC, 55–65Hz |
| Absorption / float / storage | 28.8V / 27.6V / 26.4V |
| Communications | VE.Bus plus two general-purpose communication ports |
| Protection category | IP21 |
| Operating temperature | -40°C to +65°C, fan-assisted cooling |
| Dimensions | 536 × 277 × 147mm |
| Weight | 19kg / 42lb |
| Listing | UL 458 |
| Safety standard | CSA 22.2 107.1-16 and applicable EN/IEC standards |
| Manufacturer warranty | 5-year limited warranty, subject to Victron terms |
What Is Included?
One Victron MultiPlus-II inverter/charger. Battery cables, DC protection, AC breakers, GX monitoring equipment, solar charge controllers and installation hardware are sold separately unless specifically stated on the order.
Recommended System Components
- Victron Cerbo GX and GX Touch display for system monitoring.
- Victron SmartShunt or BMV battery monitor.
- Victron SmartSolar MPPT charge controller for solar charging.
- Victron Lynx Distributor or correctly engineered DC bus and protection.
- Properly sized battery bank, conductors, disconnects, fuses and AC protection.
Installation and Compatibility
This unit requires a properly designed 24V battery bank and professional DC and AC protection. It is not a solar charge controller. Parallel, split-phase or three-phase systems require compatible Victron equipment, correct programming and qualified system design.
Official Documents
Frequently Asked Questions
Does it include an MPPT solar controller?
No. Add a compatible Victron SmartSolar MPPT sized for the solar array and battery bank.
Can it work with a generator?
Yes. PowerControl and PowerAssist help manage limited generator or shore-power capacity when the system is properly configured.
Can two units create split phase?
Victron supports split-phase system configurations through VE.Bus, subject to compatible equipment, programming and electrical design.
Is it suitable for lithium batteries?
It can be configured for many lithium systems, but battery-BMS compatibility and charge settings must be confirmed before installation.
Why Buy from Solar World Canada?
- Canadian solar-system experience and practical product guidance.
- Calgary pickup by appointment and Canada-wide shipping coordination.
- Support selecting compatible batteries, inverters, racking and balance-of-system equipment.
- Project-focused recommendations instead of a one-size-fits-all product sale.
Need a complete system? Contact Solar World Canada with your battery voltage, battery chemistry, largest AC loads, generator or shore-power details and solar-array size for a compatibility review.
