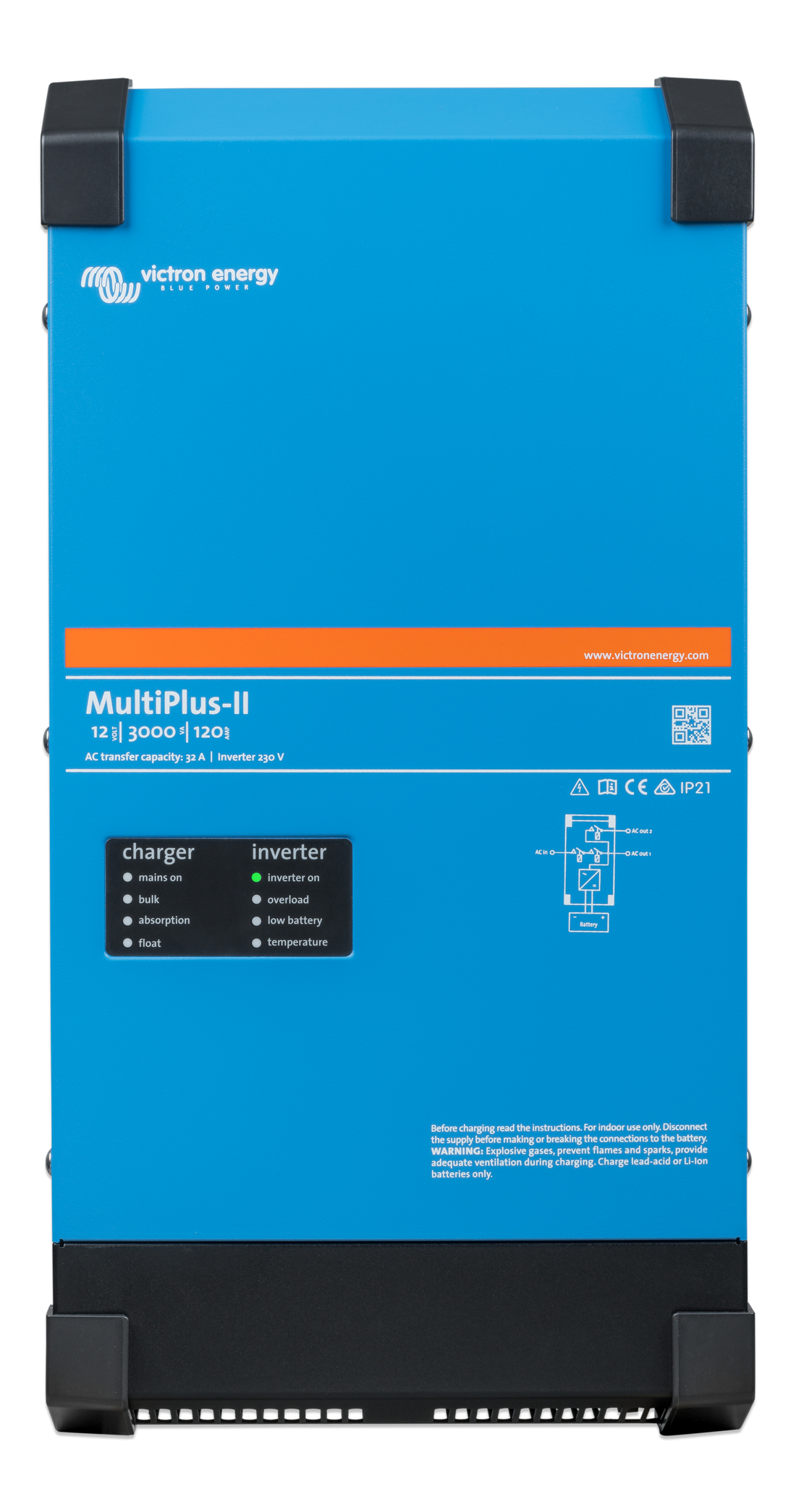

Victron MultiPlus-II 12/3000/120-50 120V UL Inverter/Charger
The Victron MultiPlus-II 12/3000/120-50 combines a 3000VA true sine wave inverter, 120A adaptive charger, 50A transfer switch, PowerControl and PowerAssist in one VE.Bus platform. It is designed for professional RV, marine, mobile, cabin, backup-power and off-grid 12V battery systems.
Verified Highlights
- 3000VA inverter with 2400W continuous output at 25°C.
- 5500W peak power for short-duration startup loads.
- 120A maximum battery charging current.
- 50A transfer switch and 50A maximum AC input current.
- PowerControl and PowerAssist for generator or shore-power management.
- VE.Bus support for parallel, split-phase and three-phase system integration.
- UL 458 version identified by manufacturer part number PMP122305122.
Complete Technical Specifications
| Manufacturer | Victron Energy |
|---|---|
| Model | MultiPlus-II 12/3000/120-50 120V (UL) |
| Manufacturer part number | PMP122305122 |
| Solar World Canada SKU | VE3012 |
| Battery system voltage | 12V nominal |
| DC input range | 9.5–17V |
| AC output | 120VAC ±2%, 60Hz ±0.1% |
| Continuous inverter rating | 3000VA / 2400W at 25°C |
| Continuous output at 40°C | 2200W |
| Continuous output at 65°C | 1700W |
| Peak power | 5500W |
| Maximum efficiency | 93% |
| Maximum charger current | 120A |
| Transfer switch | 50A |
| Maximum AC input | 50A |
| Communications | VE.Bus plus two general-purpose communication ports |
| Protection category | IP21 |
| Operating temperature | -40°C to +65°C, fan-assisted cooling |
| Dimensions | 578 × 277 × 148mm |
| Weight | 19kg |
| Listing | UL 458 version |
| Manufacturer warranty | 5-year limited warranty, subject to Victron terms |
What Is Included?
One Victron MultiPlus-II inverter/charger. Battery cables, DC protection, AC breakers, GX monitoring equipment, solar charge controllers and installation hardware are sold separately unless specifically stated.
Recommended System Components
- Victron Cerbo GX and GX Touch for monitoring.
- Victron SmartShunt or BMV battery monitor.
- Victron SmartSolar MPPT charge controller.
- Victron Lynx Distributor or correctly engineered DC bus and protection.
- High-current 12V battery bank, properly sized conductors, disconnects and fuses.
Important 12V Design Note
A 2400W AC load can require well over 200A from a 12V battery bank after inverter losses. Battery capability, conductor size, fuse protection and voltage-drop calculations are critical. For longer cable runs or frequent high-power use, a 24V or 48V architecture may be more practical.
Official Documents
Frequently Asked Questions
Does it include an MPPT solar controller?
No. Add a compatible Victron SmartSolar MPPT sized for the array and battery bank.
Can it work with a generator?
Yes. PowerControl and PowerAssist can manage limited generator or shore-power capacity when properly configured.
Is it suitable for lithium batteries?
It can be configured for many lithium systems, but battery-BMS compatibility and charging settings must be confirmed.
Why Buy from Solar World Canada?
- Canadian solar-system experience and practical compatibility guidance.
- Calgary pickup by appointment and Canada-wide freight coordination.
- Support selecting compatible racking, inverters, monitoring and balance-of-system equipment.
- Project-focused recommendations instead of a one-size-fits-all product sale.
Need a compatibility review? Provide the battery chemistry, battery capacity, largest AC loads, generator or shore-power information and solar-array size.
