JA Solar
36-Panel Pallet | JA Solar DeepBlue 4.0 Pro 500W Bifacial Black | JAM60D41-500/LB
In stock
Pickup by appointment in Calgary · Shipping calculated at checkout
Product details

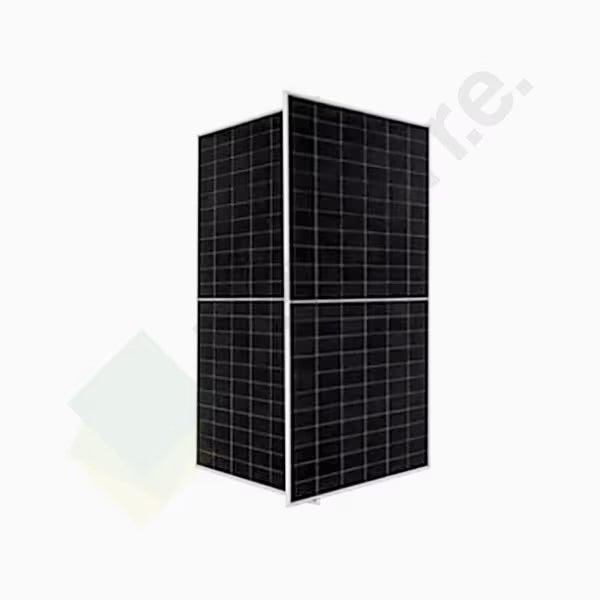

18.00kW Pallet of JA Solar JAM60D41-500/LB Bifacial Black Modules
This full pallet contains 36 JA Solar DeepBlue 4.0 Pro JAM60D41-500/LB 500W N-type bifacial dual-glass modules, providing 18.00kW of rated front-side capacity. The compact 120 half-cell format combines high efficiency, black-frame aesthetics and commercial-grade durability for residential rooftops, light-commercial arrays and engineered ground mounts.
Verified Pallet and Module Specifications
| Manufacturer | JA Solar |
|---|---|
| Model | JAM60D41-500/LB |
| Rated power | 500W per module |
| Pallet quantity | 36 modules |
| Total front-side capacity | 18.00kW |
| Technology | N-type TOPCon bifacial, dual glass |
| Cell layout | 120 half cells, 6 × 20 |
| Module efficiency | 22.6% |
| Open-circuit voltage, Voc | 43.85V |
| Short-circuit current, Isc | 14.42A |
| Maximum-power voltage, Vmp | 36.91V |
| Maximum-power current, Imp | 13.55A |
| Maximum system voltage | 1500V DC |
| Maximum series fuse | 30A |
| Power tolerance | 0 to +3% |
| Bifaciality | 80% ±10% |
| Pmax temperature coefficient | -0.290%/°C |
| Operating temperature | -40°C to +85°C |
| Dimensions | 1953 × 1134 × 30mm |
| Weight | 27.3kg per module |
| Approximate net module weight | 982.8kg for 36 modules, excluding pallet and packaging |
| Junction box | IP68, three bypass diodes |
| Connector compatibility | QC 4.10-351 / MC4-EVO2 compatible |
| Product warranty | 12 years, subject to JA Solar terms |
| Performance warranty | 30-year linear power warranty, subject to JA Solar terms |
Commercial Advantages
- 500W output in a more manageable format than typical 600W-class commercial modules.
- Bifacial rear-side production can increase energy yield where array height and ground reflectivity permit.
- N-type TOPCon construction supports low degradation and strong long-term output.
- Black frame and compact dimensions suit visible residential and light-commercial installations.
What Is Included?
One factory pallet containing 36 JA Solar modules. Racking, inverters, rapid-shutdown equipment, PV wire, connectors, disconnects, freight unloading and installation are not included unless added to the quotation.
Freight and Receiving
The 36 modules alone weigh approximately 983kg. Final packaged weight and pallet dimensions must be confirmed before shipment. Arrange a forklift, loading dock or suitable unloading plan and inspect the pallet before signing the carrier receipt.
Electrical and Structural Design Notes
Confirm cold-weather string voltage, inverter MPPT current limits, rapid-shutdown requirements, conductor ampacity, racking clamp zones and structural loads before ordering. Microinverter compatibility must be checked against the module's 13.55A Imp, 14.42A Isc and 500W rating.
Official Product Documents
Frequently Asked Questions
Can these modules work with microinverters?
Potentially. Confirm the exact microinverter input-current, voltage and module-power limits before purchase.
Is freight included?
No. Freight is quoted separately based on destination, access and unloading requirements.
Can the pallet be split?
This listing is configured as a complete 36-module pallet. Ask separately about individual-panel availability.
Why Buy from Solar World Canada?
- Canadian solar-system experience and practical compatibility guidance.
- Calgary pickup by appointment and Canada-wide freight coordination.
- Support selecting compatible racking, inverters, monitoring and balance-of-system equipment.
- Project-focused recommendations instead of a one-size-fits-all product sale.
Availability note: Charge Solar lists this model as a 36-panel request-pricing item. Confirm current Canadian warehouse allocation and cost before accepting payment.
Full-Pallet Freight
This item ships as an intact manufacturer pallet. Actual freight is quoted separately based on destination, site access and unloading requirements. The additional $95 small-order pallet/protective-packaging fee does not apply.
